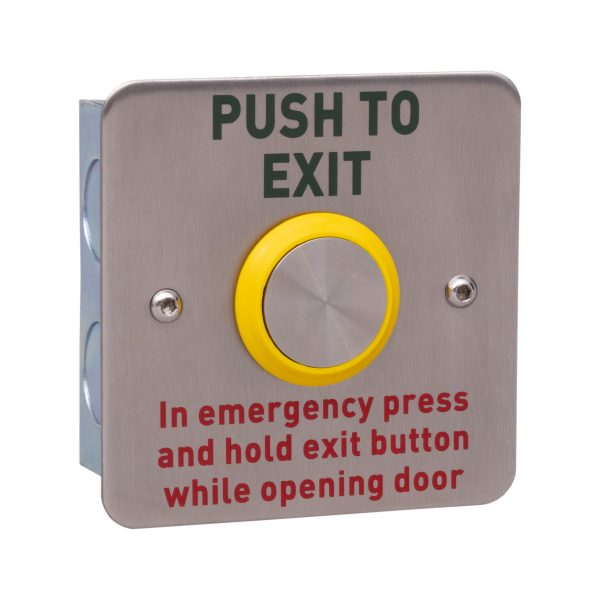

Description
Technical specifications
• Flush fitting
• Stainless steel plate
• IP65 rated switch
• Output: 4 AMP contact @ 30V AC/DC
• Double pole NO/NC contact
• Both contacts can be installed to provide a fail safe solution
• Use normally open circuit to trigger a timed exit on controller (Normally closed circuit will remove power to lock directly on a momentary basis)
• Can be used to replace a green break glass that is often misused (must be approved by local fire control)
Features:
• Stainless Steel Button
• Momentary operation / contact
• Flush fitting as standard
• Easy clean surface
• Ideal for general / sensitive areas
• Gasket and gland included
• Screw footprint for flush fitting onto standard back box
• Distance between fixing holes 60mm
• Yellow halo to assist visually impaired users
