Description
Technical specifications

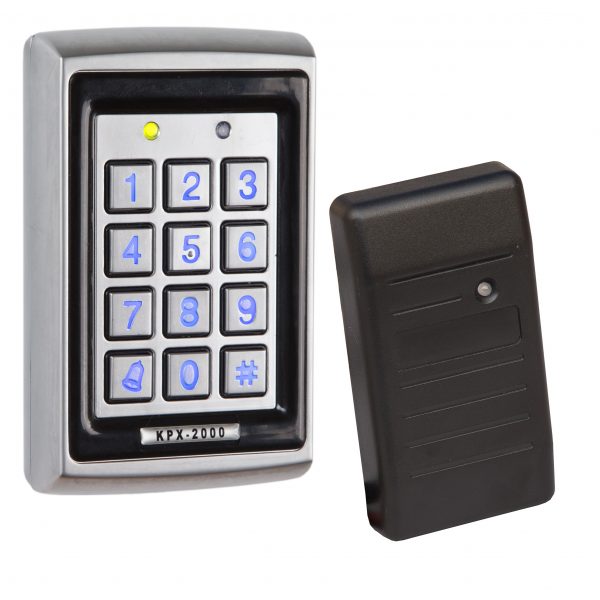

KPX2000
- Built in prox reader.
- Input for separate Wiegand reader.
- Uses EM cards or fobs
- Keypad or prox.
- Internal/External use only if fitted with RGL Rain Shield.
- 12VDC.
- Selectable backlit feature.
- Lock and Aux outputs.
- 500 unique users.
- PCB formal coated
RD26
- High impact plastic reader for external use
- Fully encapsulated to IP65
- 9-12VDC @max 50Ma
- 26 bit EM formatted reader
- Wiegand 4 wire connection
- Card read time of 120mS
- Operating frequency 125kHz
- Maximum transfer distance of 100m (screened cable)
- Operating temperature -20c to 60c
