EBGBWC02/PTE

EBGBWC02/PTE

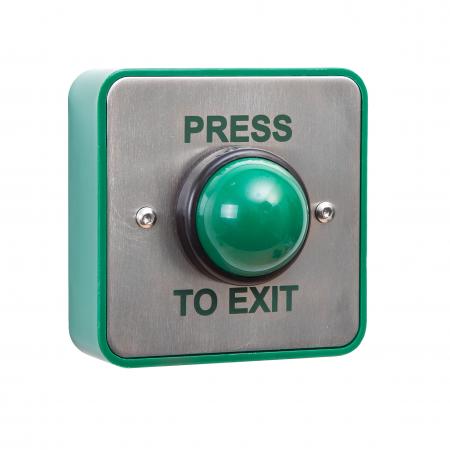

Green Dome Exit Button

With Collar

Compare

Description

Technical specifications

  • Contacts : Double pole N/O – N/C
  • Output : 4 AMP contact @ 30 V AC/DC
  • Wear resistant legend
  • Security screws (Allen key type)
  • Internal or External use
  • Green Button rated IP66 ingress protection
  • Silver contacts
  • Operating temperature -20 to +60C
  • Operating travel: 2mm
  • Contact resistance: 10m OHM (Max)

Features:

  • All plastic large green button
  • Momentary operation / contact
  • High impact plastic back box
  • Can be surface or flush fitting
  • Easy clean surface
  • Ideal for general/sensitive areas
  • Screw footprint for flush fitting onto standard back box
  • Anti rotational mounting



Additional information

Dimensions

85x85x32 (mm)

Product Code

EBGBWC02/PTE

Feature SheetDownload
DiagramsDownload
